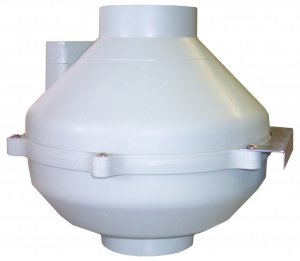

Dryer Booster Fan with Pressure Switch

The Dryer Booster fans features a plastic housing constructed of UL-recognized, UV-protected thermoplastic resin. It is supplied with mounting bracket and a separate pressure switch package for easy installation.The backwards-inclined blade is quieter than comparable axial fans.  Class B insulation combined with auto-reset thermal overload protection ensures a long trouble free lifespan with years of continuous duty. To increase the warranty from three to five years, you can add the recommended lint trap to your order.

For larger orders (+10), please contact us for volume pricing



Tab 2


Model A B C D
 R-100  4.0 9.7 11.3 1.2
R-110 4.0 9.7 11.3 1.2
R-150 6.0 9.0 14.9 1.2
All dimensions measured in inches

Tab 3


    Specification Data Static Pressure (in. W.G.)
 Model Duct Volts  Current 0.0" 0.2" 0.4" 0.6" 0.8" 1.0 1.5" 2.0" 2.5" 3.0" Max sp.
R-100  4" 115V 0.23 A  141 120  100  78  46  -  - - - - 0.975"
R-110 4" 115V 0.74 A 173 162 150 139 125 115 77 15 - - 2.213"
R-150 6" 115V 1.78 A 368 332 286 248 190 163 55 - - - 1.686"
Red indicates Energy Star rated models


List Price: $173.00
Our Price: $161.99
You Save: $11.01 (6%)

Quantity:
Size:
